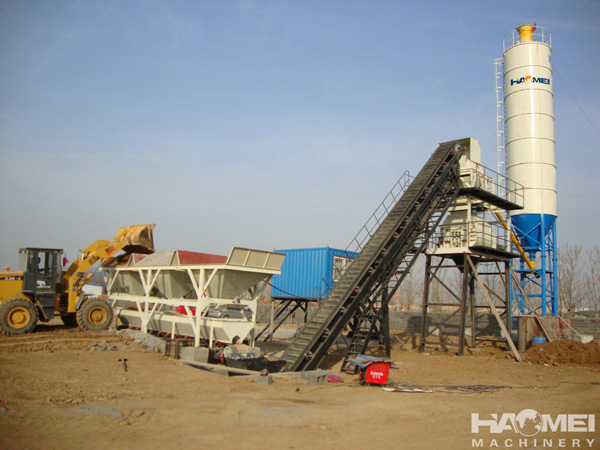

HZS60 Concrete Batching Plant

1. Product Description

The HZS60 Concrete Batching Plant is a medium-scale, compulsory concrete mixing equipment with a theoretical productivity of 60 m³/h. Unlike skip hoist models, the HZS60 utilizes a flat belt conveyor system for aggregate feeding, which significantly reduces the cycle time and enhances overall production efficiency.

Equipped with the powerful JS1000 twin-shaft compulsory mixer, the HZS60 ensures high-quality mixing for various concrete types, including plastic and dry-hard concrete. Its modular design, high degree of automation, and precise weighing system make it the premier choice for large-scale bridge projects, highway construction, and commercial concrete suppliers.

2. Technical Specifications

Parameter	Specification Details
Theoretical Productivity	60 m³/h
Main Mixer Model	JS1000 (Twin-Shaft Compulsory Mixer)
Feeding Method	Belt Conveyor (Higher Efficiency)
Discharging Height	3.8m / 4.1m (Standard)
Aggregate Bin Quantity	3 or 4 Bins (PLD1600 / PLD2400)
Max Aggregate Size	≤ 60mm (Gravel) / ≤ 80mm (Pebble)
Weighing Accuracy	Powder/Water/Admixture: ±1%; Aggregate: ±2%
Control System	Fully Automatic PLC with Computer Monitoring
Total Power	Approx. 105 kW

3. Key Applications

The HZS60 plant is engineered for versatility in demanding environments:

Infrastructure Projects: Highways, high-speed railways, airport runways, and large-scale bridges.
Municipal Works: Subway construction, water conservancy, and urban infrastructure.
Commercial Concrete Supply: Small to medium-sized commercial concrete businesses serving local markets.
Precast Production: Factories manufacturing large concrete pipes, blocks, and structural elements.

4. Pros & Cons Comparison

Advantages (Pros)	Disadvantages (Cons)
High Output Efficiency: Belt feeding ensures continuous material flow and shorter cycle times (45-50s).	Larger Footprint: Requires more land space due to the length and incline of the belt conveyor.
Superior Stability: The belt system provides smoother operation and less wear than skip hoists.	Higher Initial Cost: More expensive than skip hoist models (like HZS50) due to additional conveyor structures.
Fully Automated: Advanced PLC control allows for precise batching and detailed report printing.	Maintenance Needs: Requires regular inspection of the belt tension and rollers.

5. Packaging & Shipping

We ensure the safe delivery of HZS60 equipment through rigorous export-standard packaging:

Core Components: The main mixer, weighing sensors, and electrical control cabinets are wrapped in anti-corrosion film and packed in seaworthy, non-fumigation wooden cases.
Steel Structures: The belt conveyor frame, aggregate bins, and support legs are bundled securely and treated with anti-rust coatings.
Container Logistics: A standard HZS60 setup typically requires 2-3 x 40HQ containers. Open-top containers may be used for extra-long conveyor sections.
Securing: All items are reinforced inside the containers using steel wire ropes and timber bracing to prevent shifting during maritime transit.

Tag： JS1000 mixing station 60m³/h concrete plant
