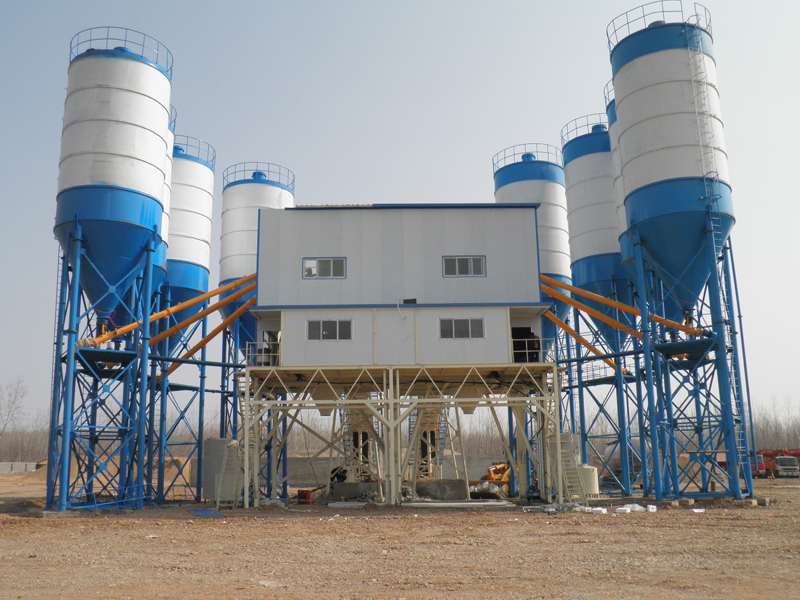

HZS150 Concrete Batching Plant

1. Product Description

The HZS150 Concrete Batching Plant is a flagship, high-performance stationary concrete production system designed for 2026's most demanding construction requirements. With a theoretical productivity of 150 m³/h, this plant is anchored by the powerhouse JS3000 twin-shaft forced mixer, renowned for its ability to produce high-homogeneity concrete in short cycles.

Designed for durability and intelligence, the HZS150 integrates advanced weighing technology and an eco-friendly dust management system, ensuring it meets international environmental and quality standards for large-scale industrial use.

2. Technical Parameters

Item	Technical Specification
Theoretical Productivity	150 m³/h
Mixer Model	JS3000 (Twin-shaft Forced Mixer)
Mixer Capacity (Discharge)	3000 L
Max. Aggregate Size	≤ 60/80 mm
Aggregate Batching Capacity	PLD4800 (3 or 4 Bins)
Discharge Height	4.2 Meters (Adjustable)
Control System	Fully Auto PLC with Smart Monitoring
Weighing Accuracy	Aggregate ±2%; Cement/Water/Additive ±1%
Total Power	~260 kW
Cycle Period	72 Seconds

3. Applications

The HZS150 is the "heavyweight" choice for projects requiring massive and continuous concrete supply:

Commercial Concrete Plants: Ideal for high-volume urban concrete suppliers.
Infrastructure Megaprojects: High-speed rail networks, bridge foundations, and airport runways.
Marine & Hydraulic Engineering: Dam construction and large-scale port facilities.
Precast Industry: Mass production of large-scale precast concrete segments.

4. Advantages

Unmatched Efficiency: The 150m³/h output ensures rapid project completion and high ROI.
2026 Smart Control: Equipped with dual-computer synchronization and remote cloud diagnostics for real-time management.
Precision Engineering: High-precision sensors ensure the exact ratio for high-performance concrete (HPC).
Eco-Friendly Design: Features a fully enclosed tower and high-efficiency pulse dust collectors to achieve zero-emission goals.
Robust Stability: Constructed with heavy-duty steel for high reliability in 24/7 operations.

5. Disadvantages

Significant Spatial Requirement: Requires a large site area for the main tower and extensive aggregate storage.
High Power Demand: The 260kW+ load requires a stable and high-capacity industrial power grid.
Higher Initial Investment: Due to its scale and automation, it requires a larger upfront capital compared to the HZS120 model.

6. Packaging & Transportation

To ensure the HZS150 arrives in perfect condition globally:

Modular Breakdown: The main tower is disassembled into modular sections for safe loading into 40HQ containers.
Surface Protection: All critical machinery is treated with anti-rust coatings and wrapped in industrial-grade waterproof film.
Safe Crating: Precise components like the PLC control unit and weighing sensors are packed in reinforced, fumigation-free wooden crates.
Silo Shipping: Cement silos are typically shipped as "bolted-type" to maximize container space and reduce sea freight costs.

Tag： JS3000 Twin-shaft Mixer 150m³/h Concrete Mixing Plant
