Product Description

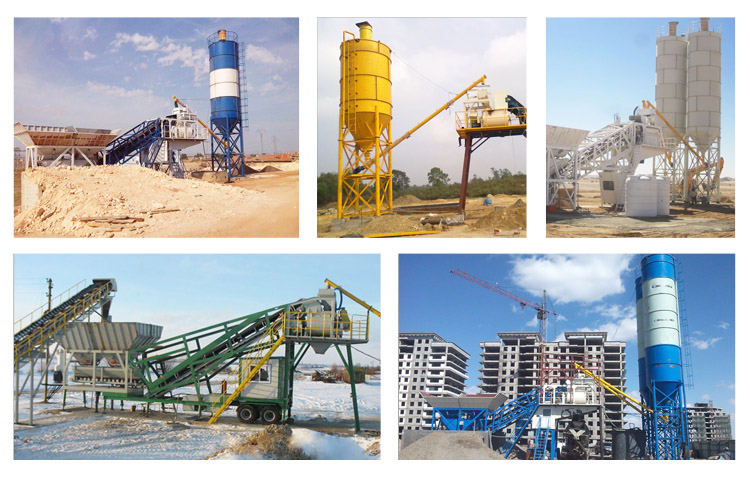

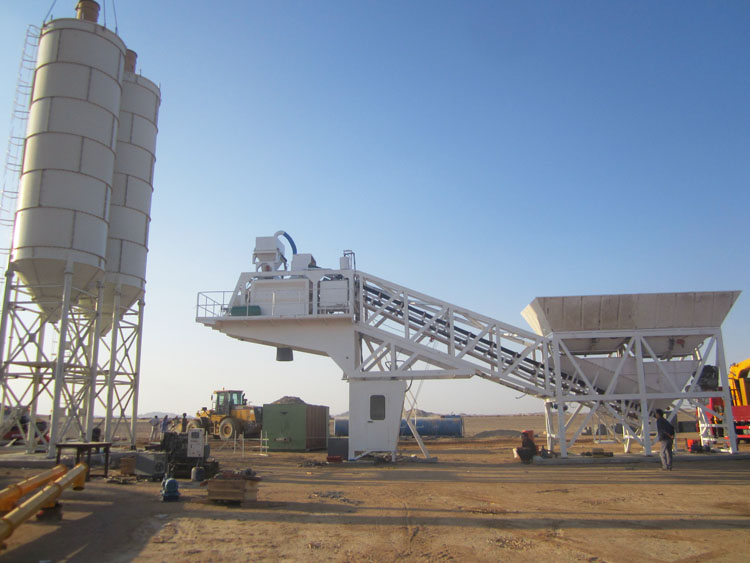

The YHZS35 Mobile Concrete Batching Plant is a highly integrated, portable concrete production unit designed for projects that require frequent relocation and on-site mixing. With a productivity of 35m³/h, it combines material storage, weighing, conveying, mixing, and control systems into a single trailer unit.
Whether you are working on highway construction, bridges, dams, or small-to-medium building projects, the YHZS35 offers the flexibility of a mobile unit with the stability of a stationary plant. Its compact design allows for quick installation (within 24-48 hours) and easy transportation using a truck tractor.
Technical Specifications (Table)
| Model |
YHZS35 |
| Productivity |
35 m³/h |
| Mixer Model |
JS750 Twin-Shaft Concrete Mixer |
| Max Aggregate Size |
≤ 60 mm |
| Discharge Height |
3.8 meters (Customizable) |
| Aggregate Bin Capacity |
2 or 3 bins (total ~7m³) |
| Weighing Accuracy |
Aggregate (±2%), Cement (±1%), Water/Additives (±1%) |
| Total Power |
~60 kW |
| Control System |
Fully Automatic / Semi-Automatic PLC Control |
| Overall Weight |
~15,000 kg |
| Transportation Type |
Trailer-mounted / Towed by Truck |
Key Advantages
- Rapid Mobility: The entire plant is mounted on a chassis with wheels and a kingpin, making it extremely easy to move from one site to another.
- Quick Installation: No foundation is required for most surfaces. The modular design allows for assembly and disassembly in just 1-2 days.
- Superior Mixing Quality: Equipped with the JS750 twin-shaft mixer, ensuring uniform mixing for various types of concrete (plastic, dry-hard, etc.).
- Compact Footprint: Ideal for narrow construction sites or remote areas where space is limited.
- Smart Control: Advanced PLC system with a touch screen for real-time monitoring and precise weighing.
Disadvantages (Considerations)
- Capacity Limit: With 35m³/h, it is not suitable for massive-scale infrastructure projects requiring 120m³/h+.
- Cement Silo Logistics: While the main plant is mobile, the large cement silos often require separate transportation and a crane for setup.
Applications (Uses)
The YHZS35 is the preferred choice for:
- Road & Bridge Construction: Perfect for long-distance projects where the plant needs to move as the road progresses.
- Rural Infrastructure: Ideal for small towns or remote areas where stationary plants are unavailable.
- Temporary Projects: Construction of airport runways, tunnels, or harbor piers.
- Concrete Supply for Hire: A profitable asset for equipment rental businesses.
Packaging & Shipping
- Main Chassis: Generally shipped as a "Breakbulk" or in a 40FR (Flat Rack) container due to its dimensions.
- Components: Smaller parts, such as the control cabin, screw conveyors, and accessories, are packed in standard 40HQ (High Cube) containers.
- Protection: All mechanical parts are coated with anti-corrosive oil, and electrical systems are wrapped in waterproof plastic film for long-distance sea freight.
Why Choose Our YHZS35?
As a leading manufacturer, we provide:
- Global After-Sales Service: Installation engineers available for overseas dispatch.
- Customization: Optional configurations for aggregate bins, discharge height, and climate-specific features.
- Certified Quality: ISO and CE certified components.
